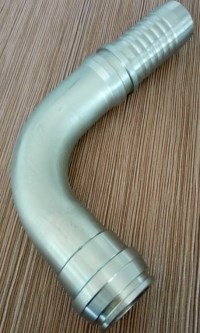

Product Name: hose joint
Product brand: Hengchuang
Product model: 20491/20591 series
Product material: carbon steel
The caliber of the takeover: 6-51 (mm)
Installation: withholding
Suitable range: engineering machinery, hydraulic equipment
Dear [20491/20591 series hose joint] customer! You are the 124538th guest to visit Hengchuang enterprise! Hengchuang Precisions understand our customer's world and the daily challenges they face. Together, we can partner for positive change. Hengchuang has been committed to Mechanics、High-speed rail、metro、Ship、Military factory innovation exploration and experience accumulation since its establishment, and has provided [20491/20591 series hose joint] products to hundreds of customers!
Product Name: hose joint
Product brand: Hengchuang
Product model: 20491/20591 series
Product material: carbon steel
The caliber of the takeover: 6-51 (mm)
Installation: withholding
Suitable range: engineering machinery, hydraulic equipment
technical parameter
90° O-RINGMETRIC FEMALE24°CONE L.T. DIN3865
|
代号 |
螺纹 E |
胶管 HOSE BORE |
管子外径 |
尺寸 DIMENSIONS |
|||
|
PART NO |
THREAD E |
公称内径DN |
标号 DASH |
TUBE O.D. |
C |
S2 |
H |
|
20491-14-04T |
M14X1.5 |
6 |
4 |
8 |
2 |
19 |
38 |
|
20491-16-04T |
M16X1.5 |
6 |
4 |
10 |
2 |
22 |
42 |
|
20491-16-05T |
M16X1.5 |
8 |
5 |
10 |
2 |
22 |
42 |
|
20491-16-06 |
M16X1.5 |
10 |
6 |
10 |
2 |
22 |
51.8 |
|
20491-18-06T |
M18X1.5 |
10 |
6 |
12 |
2.5 |
24 |
53.3 |
|
20491-22-08T |
M22X1.5 |
12 |
8 |
15 |
2.5 |
27 |
58 |
|
20491-26-10T |
M26X1.5 |
16 |
10 |
18 |
2.5 |
32 |
56.5 |
|
20491-27-10T |
M27X1.5 |
16 |
10 |
18 |
2.5 |
32 |
67.5 |
|
20491-30-12T |
M30X2 |
20 |
12 |
22 |
4 |
36 |
64 |
|
20491-36-12T |
M36X2 |
20 |
12 |
28 |
4 |
41 |
69 |
|
20491-36-16 |
M36X2 |
25 |
16 |
28 |
4 |
41 |
86 |
|
20491-39-16T |
M39X2 |
25 |
16 |
28 |
4 |
41 |
86 |
|
20491-45-16T |
M45X2 |
25 |
16 |
35 |
5 |
55 |
73.5 |
|
20491-45-20T |
M45X2 |
32 |
20 |
35 |
5 |
55 |
86 |
|
20491-52-24T |
M52X2 |
40 |
24 |
42 |
5.5 |
60 |
103.5 |
