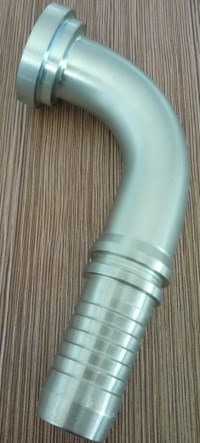

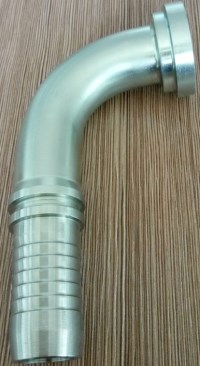

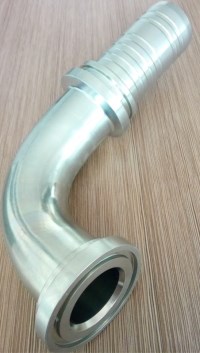

Product Name: hose joint
Product brand: Hengchuang
Product model: 87391/87691 series
Product material: carbon steel
The caliber of the takeover: 6-51 (mm)
Installation: withholding
Suitable range: engineering machinery, hydraulic equipment
Dear [87391/87691 series hose joint] customer, it is very lucky that you can find us in the vast information! Do what we say and say what we do .Since its establishment, Henan Hengchuang Hydraulic Co.Henan hengchuang Precision Manufacturing Co.. has been deeply involved in the Mechanics、High-speed rail、metro、Ship、Military factory field and has tried to provide 87391/87691 series hose joint products for Mechanics、High-speed rail、metro、Ship、Military factory customers! The following is the relevant information of 87391/87691 series hose joint product organized by Hengchuang Precisions for you.
Product Name: hose joint
Product brand: Hengchuang
Product model: 87391/87691 series
Product material: carbon steel
The caliber of the takeover: 6-51 (mm)
Installation: withholding
Suitable range: engineering machinery, hydraulic equipment
technical parameter
90°SAE flange 3000psi
|
代 号 |
螺纹 E |
胶管HOSE BORE |
尺寸 DIMENSIONS |
||||
|
PART NO. |
THREAD E |
公称内径DN |
标号DASH |
C |
H |
D |
L |
|
87391-12-08 |
3/4" |
12 |
8 |
38.1 |
49 |
31.7 |
7 |
|
87391-12-12 |
3/4" |
20 |
12 |
38.1 |
63 |
31.7 |
7 |
|
87391-16-12 |
1" |
20 |
12 |
44.4 |
63 |
38 |
8.2 |
|
87391-16-16 |
1" |
25 |
16 |
44.4 |
68.5 |
38 |
8.2 |
|
87391-20-16 |
1.1/4" |
25 |
16 |
50.8 |
68.5 |
43.2 |
8.2 |
|
87391-20-20 |
1.1/4" |
32 |
20 |
50.8 |
79.5 |
43.2 |
8.2 |
|
87391-24-20 |
1.1/2" |
32 |
20 |
60.3 |
84.5 |
50.3 |
8.2 |
|
87391-24-24 |
1.1/2" |
40 |
24 |
60.3 |
98 |
50.3 |
8.2 |
|
87391-32-24 |
2" |
40 |
24 |
71.4 |
98 |
62.2 |
9.8 |
|
87391-32-32 |
2" |
50 |
32 |
71.4 |
118.3 |
62.2 |
9.8 |
Brand achievement is not the pursuit of Hengchuang people. How to make Hengchuang [87391/87691 series hose joint] quality stable and reliable, create greater customer value, and provide products for the International friends is the direction that Hengchuang are committed to pursuing! Product manufacturing internationalization, service global customers！
In the online marketplace, differentiation is the key to winning business. Your product needs to stand out. Please contact us.
