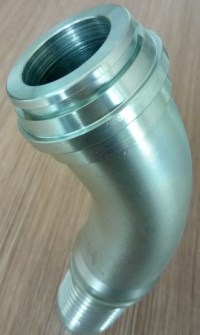

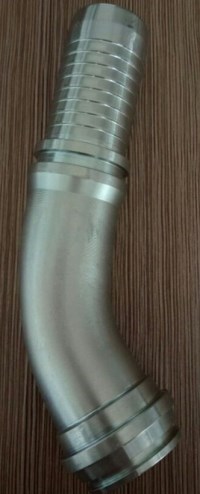

Product Name: hose joint
Product brand: Hengchuang
Product model: 20441/20541 series
Product material: carbon steel
The caliber of the takeover: 6-51 (mm)
Installation: withholding
Suitable range: engineering machinery, hydraulic equipment
Thank you international friends for paying attention to made in China！ [20441/20541 series hose joint] Hello, customer friend, thank you very much for clicking to enter the Hengchuang Precisions official enterprise website! Strict 20441/20541 series hose joint quality stability, reflecting the reassuring "Made in China", is Hengchuang Precisions has never stopped pursuing for many years! If you want to know more about the actual application of [20441/20541 series hose joint] products, please browse the following 20441/20541 series hose joint product information in detail or call the Henan Hengchuang Hydraulic Co.Henan hengchuang Precision Manufacturing Co.. [20441/20541 series hose joint] technical consultation phone to learn more new information!
Product Name: hose joint
Product brand: Hengchuang
Product model: 20441/20541 series
Product material: carbon steel
The caliber of the takeover: 6-51 (mm)
Installation: withholding
Suitable range: engineering machinery, hydraulic equipment
technical parameter
45°O-RINGMETRIC FEMALE24°CONE L.T. DIN3865
|
代号 |
螺纹 E |
胶管 HOSE BORE |
管子外径 |
尺寸 DIMENSIONS |
|||
|
PART NO |
THREAD E |
公称内径DN |
标号 DASH |
TUBE O.D. |
C |
S2 |
H |
|
20441-14-04T |
M14X1.5 |
6 |
4 |
8 |
2 |
19 |
27 |
|
20441-16-04T |
M16X1.5 |
6 |
4 |
10 |
2 |
22 |
27.3 |
|
20441-16-05T |
M16X1.5 |
8 |
5 |
10 |
2 |
22 |
21.2 |
|
20441-16-06 |
M16X1.5 |
10 |
6 |
10 |
2 |
22 |
29.2 |
|
20441-18-06T |
M18X1.5 |
10 |
6 |
12 |
2.5 |
24 |
29.2 |
|
20441-22-08T |
M22X1.5 |
12 |
8 |
15 |
2.5 |
27 |
33.2 |
|
20441-26-10T |
M26X1.5 |
16 |
10 |
18 |
2.5 |
32 |
35.9 |
|
20441-27-10T |
M27X1.5 |
16 |
10 |
18 |
2.5 |
32 |
35.9 |
|
20441-30-10T |
M30X2 |
16 |
10 |
22 |
4 |
36 |
30.3 |
|
20441-30-12T |
M30X2 |
20 |
12 |
22 |
4 |
36 |
31.5 |
|
20441-30-16 |
M30X2 |
25 |
16 |
22 |
4 |
36 |
36.5 |
|
20441-36-16 |
M36X2 |
25 |
16 |
28 |
4 |
41 |
35 |
|
20441-45-16T |
M45X2 |
32 |
16 |
35 |
5 |
55 |
35 |
|
20441-45-20T |
M45X2 |
32 |
20 |
35 |
5 |
55 |
39 |
|
20441-52-24T |
M52X2 |
40 |
24 |
42 |
5.5 |
60 |
45.3 |
Assisted by science and technology！ Less nonsense and more practical work! No amount of rhetoric and packaging planning can compare with doing something on the product! Hengchuang precipitate the brand value of [20441/20541 series hose joint] with accumulated little actions! It is fate to know each other, and cooperation is a share.
