Your position:Home>>Hose joint series>20411/20511 series hose joint

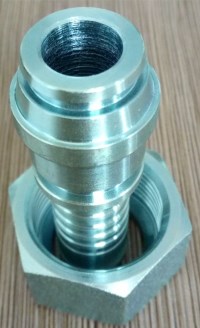

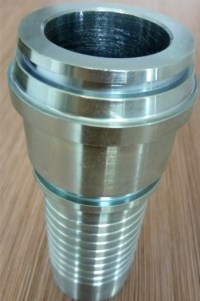

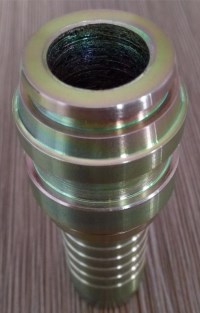

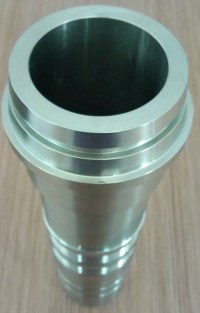

20411/20511 series hose joint
      20411/20511 series hose joint

      Product Name: hose joint

      Product brand: Hengchuang

      Product model: 20411/20511 series

      Product material: carbon steel

      The caliber of the takeover: 6-51 (mm)

      Installation: withholding

      Suitable range: engineering machinery, hydraulic equipment

      Dear [20411/20511 series hose joint] customer! You are the 124531 guest visiting Hengchuang enterprise! Transforming the world through technology. Hengchuang has been committed to technical exploration and experience accumulation in Mechanics、High-speed rail、metro、Ship、Military factory since its establishment, and has provided [20411/20511 series hose joint] products to hundreds of customers!






      Product Name: hose joint

      Product brand: Hengchuang

      Product model: 20411/20511 series

      Product material: carbon steel

      The caliber of the takeover: 6-51 (mm)

      Installation: withholding

      Suitable range: engineering machinery, hydraulic equipment


      technical parameter



      45°O-RINGMETRIC FEMALE24°CONE  L.T. DIN3865

      代号

      螺纹 E

      胶管 HOSE BORE

      管子外径

      尺寸 DIMENSIONS

      PART NO

      THREAD E

      公称内径DN

      标号 DASH

      TUBE O.D.

      C

      S2

      H

      20441-14-04T

      M14X1.5

      6

      4

      8

      2

      19

      27

      20441-16-04T

      M16X1.5

      6

      4

      10

      2

      22

      27.3

      20441-16-05T

      M16X1.5

      8

      5

      10

      2

      22

      21.2

      20441-16-06

      M16X1.5

      10

      6

      10

      2

      22

      29.2

      20441-18-06T

      M18X1.5

      10

      6

      12

      2.5

      24

      29.2

      20441-22-08T

      M22X1.5

      12

      8

      15

      2.5

      27

      33.2

      20441-26-10T

      M26X1.5

      16

      10

      18

      2.5

      32

      35.9

      20441-27-10T

      M27X1.5

      16

      10

      18

      2.5

      32

      35.9

      20441-30-10T

      M30X2

      16

      10

      22

      4

      36

      30.3

      20441-30-12T

      M30X2

      20

      12

      22

      4

      36

      31.5

      20441-30-16

      M30X2

      25

      16

      22

      4

      36

      36.5

      20441-36-16

      M36X2

      25

      16

      28

      4

      41

      35

      20441-45-16T

      M45X2

      32

      16

      35

      5

      55

      35

      20441-45-20T

      M45X2

      32

      20

      35

      5

      55

      39

      20441-52-24T

      M52X2

      40

      24

      42

      5.5

      60

      45.3




      Elevating your expectations with our exceptional service. Brand achievement is not the pursuit of Hengchuang. How to make Hengchuang [20411/20511 series hose joint] quality stable and reliable, provide products for the International friends, and improve the international competitiveness of made in China is the direction that Hengchuang are committed to pursuing!


      Hi, friends,If you want to know more information about 20411/20511 series hose joint product, pls kindly leave your phone number, We will back to you ASAP once we got your message.
