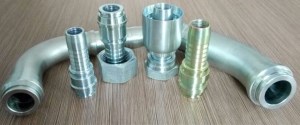

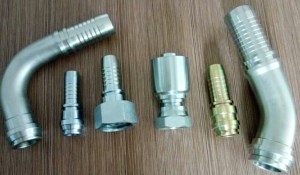

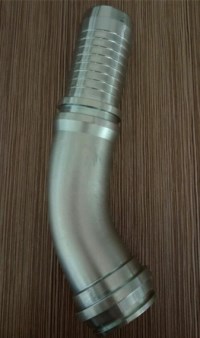

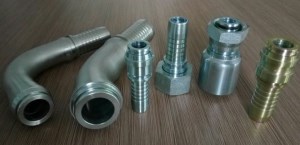

Product Name: hose joint
Product brand: Hengchuang
Product model: 24 degree outer cone belt O ring series
Product material: carbon steel
The caliber of the takeover: 6-51 (mm)
Installation: withholding
Suitable range: engineering machinery, hydraulic equipment
Dear [24 degree outer cone band O type ring series] customer, thank you for visiting the Henan Hengchuang Hydraulic Co.Henan hengchuang Precision Manufacturing Co.. official enterprise website! Over the years, Hengchuang Precisions has insisted on taking research and development as the basis of survival, and constantly improved the application of new technologies in [24 degree outer cone band O type ring series] products! Hengchuang's heritage of innovation continues,and creating new value opportunities for customers in existing and emerging markets. If you want to know more about the application of [24 degree outer cone band O type ring series] product new technology in practice, please call Hengchuang Precisions [24 degree outer cone band O type ring series] technical consultation hotline: [18236938966] to learn more new information!
Product Name: hose joint
Product brand: Hengchuang
Product model: 24 degree outer cone belt O ring series
Product material: carbon steel
The caliber of the takeover: 6-51 (mm)
Installation: withholding
Suitable range: engineering machinery, hydraulic equipment
technical parameter
A light series of O shaped rings with 24 degrees cones in a metric internal thread
|
O-RING METRIC FEMALE24°CONE L.T.DIN3865 |
|||||||
|
代号 |
螺纹 E |
胶管 HOSE BORE |
管子外径 |
尺寸 DIMENSIONS |
|||
|
PART NO |
THREAD E |
公称内径DN |
标号 DASH |
TUBE O.D. |
C |
S2 |
|
|
20411-14-04T |
M14X1.5 |
6 |
4 |
8 |
2 |
19 |
|
|
20411-14-05 |
M14X1.5 |
10 |
6 |
8 |
2 |
19 |
|
|
20411-16-04T |
M16X1.5 |
6 |
4 |
10 |
2 |
22 |
|
|
20411-16-05T |
M16X1.5 |
8 |
5 |
10 |
2 |
22 |
|
|
20411-16-06 |
M16X1.5 |
10 |
6 |
10 |
2 |
22 |
|
|
20411-18-06T |
M18X1.5 |
10 |
6 |
12 |
2.5 |
24 |
|
|
20411-22-06T |
M22X1.5 |
10 |
6 |
15 |
2.5 |
17 |
|
|
20411-22-08T |
M22X1.5 |
12 |
8 |
15 |
2.5 |
17 |
|
|
20411-26-10T |
M26X1.5 |
16 |
10 |
18 |
2.5 |
32 |
|
|
20411-27-10T |
M27X1.5 |
16 |
10 |
18 |
2.5 |
32 |
|
|
20411-30-12T |
M30X2 |
20 |
12 |
22 |
4 |
36 |
|
|
20411-36-16 |
M36X2 |
25 |
16 |
28 |
4 |
41 |
|
|
20411-45-16T |
M45X2 |
25 |
16 |
28 |
5 |
50 |
|
|
20411-45-20T |
M45X2 |
32 |
20 |
35 |
5 |
55 |
|
|
20411-52-20T |
M52X2 |
32 |
20 |
42 |
5.5 |
60 |
|
|
20411-52-24T |
M52X2 |
40 |
24 |
42 |
5.5 |
60 |
|
Made in China, best-selling globally！Brand achievement is not the pursuit of Hengchuang people. How to make Hengchuang [24 degree outer cone band O type ring series] create value for society is the direction that Hengchuang are committed to pursuing!
