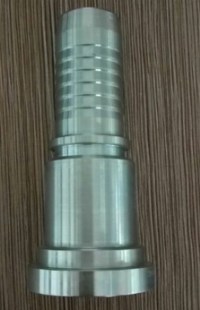

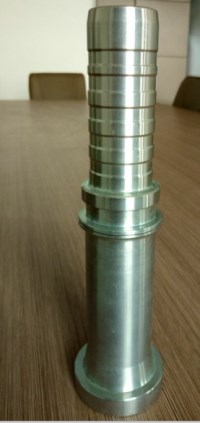

Product Name: hose joint
Product brand: Hengchuang
Product model: SAE flange series
Product material: carbon steel
The caliber of the takeover: 6-51 (mm)
Installation: withholding
Suitable range: engineering machinery, hydraulic equipment
Made in China, best-selling globally！ Dear [SAE flange series] customer, thank you for visiting the Henan Hengchuang Hydraulic Co.Henan hengchuang Precision Manufacturing Co.. official enterprise website! Over the years, Hengchuang Precisions has insisted on taking research and development as the basis of survival, and constantly improved the application of new technologies in [SAE flange series] products!
Product Name: hose joint
Product brand: Hengchuang
Product model: SAE flange series
Product material: carbon steel
The caliber of the takeover: 6-51 (mm)
Installation: withholding
Suitable range: engineering machinery, hydraulic equipment
technical parameter
|
代 号 |
螺纹 E |
胶管HOSE BORE |
尺寸 DIMENSIONS |
|||
|
PART NO. |
THREAD E |
公称内径DN |
标号DASH |
C |
D |
L |
|
87611-12-12 |
3/4" |
20 |
12 |
41.3 |
31.7 |
8.9 |
|
87611-16-16 |
1" |
25 |
16 |
47.6 |
38 |
9.6 |
|
87611-20-20 |
1.1/4" |
32 |
20 |
54 |
43.6 |
10.4 |
|
87611-24-20 |
1.1/2" |
32 |
20 |
63.5 |
50.8 |
12.7 |
|
87611-24-24 |
1.1/2" |
40 |
24 |
63.5 |
50.8 |
12.7 |
|
87611-32-24 |
2" |
40 |
24 |
79.4 |
66.5 |
12.7 |
|
87611-32-32 |
2" |
50 |
32 |
79.4 |
66.5 |
12.7 |
The above Henan Hengchuang Hydraulic Co.Henan hengchuang Precision Manufacturing Co.. technical and engineering personnel sorted out the relevant information of SAE flange series product for you. Due to the limited space, please call Hengchuang SAE flange series product technical consultation hotline immediately: [18236938966], Hengchuang are willing to provide you with new SAE flange series information to help you make the right choice! We are always up-to-date with new developments in the industry.
